72V 3000W Rear Hub Motor Kit – MTX39 Rim

Upgrade your eBike with our high-performance 72V 3000W Rear Hub Motor Kit, built for power, reliability, and high-speed performance. Available in 26", 27.5", and 29" MTX39 wheel sizes.

Note: Supplied without tyre and tube.

Please check out our battery packs, as this doesn’t include the battery, all our packs are premium LG cells.

Available Wheel Sizes

• 26" MTX39

• 27.5" MTX39

• 29" MTX39

Motor Specifications

• Rated Power: 3000W

• Voltage: 72V

• Magnet Width: 45mm

• Magnet Count: 23 pairs (46 magnets)

• Hall Sensors: Dual Hall Sensors (includes one spare)

• Peak Efficiency: 84.8%

• Maximum Torque: 80.3 Nm

• Maximum Speed: Approx. 642 RPM

• Rated Speed: Approx. 600 RPM

• Motor Weight: Approx. 10kg

• Dropout Width:

  • 135mm (Single-Speed Freewheel)

  • 155mm (Single-Speed Freewheel)

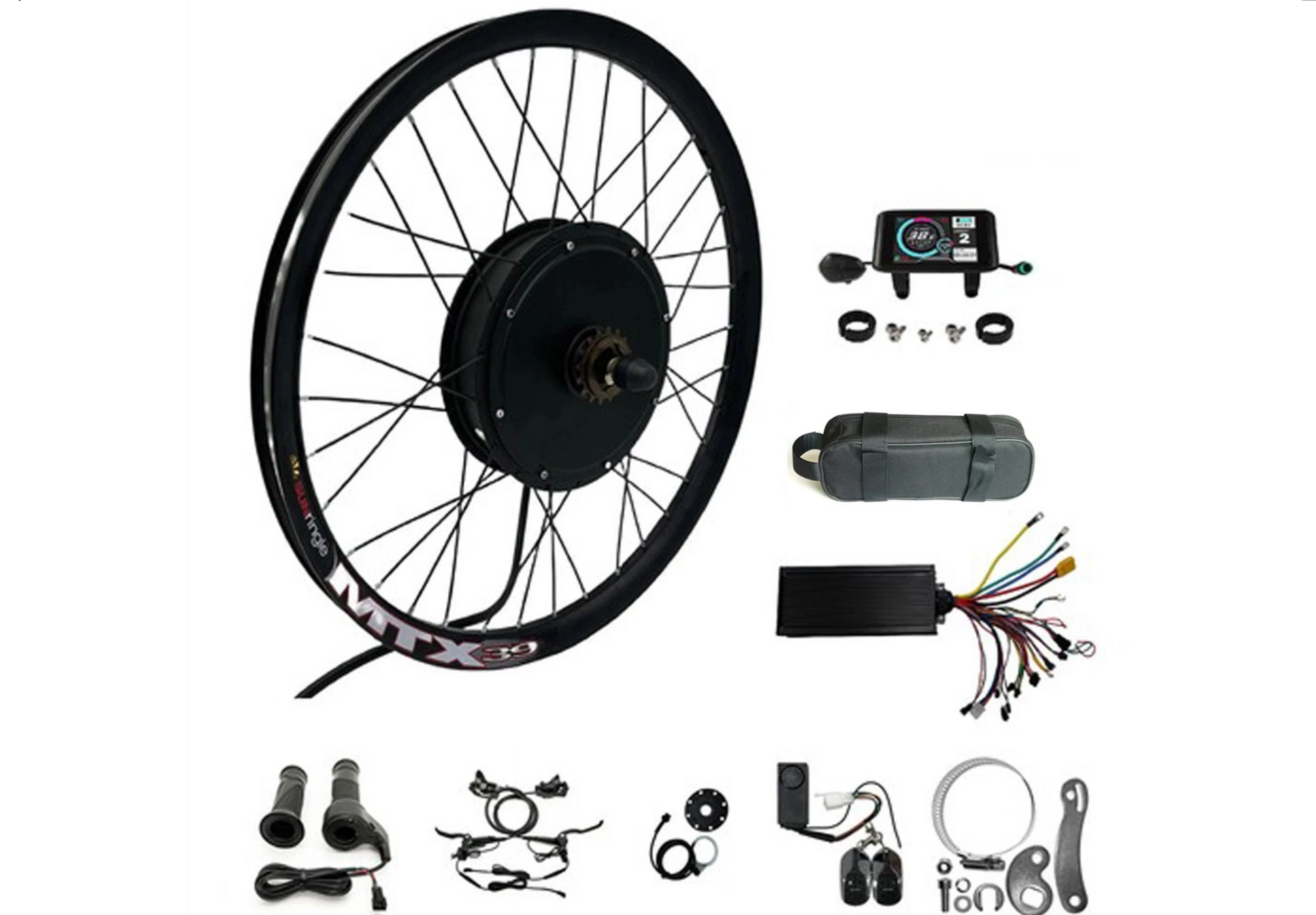

What's Included

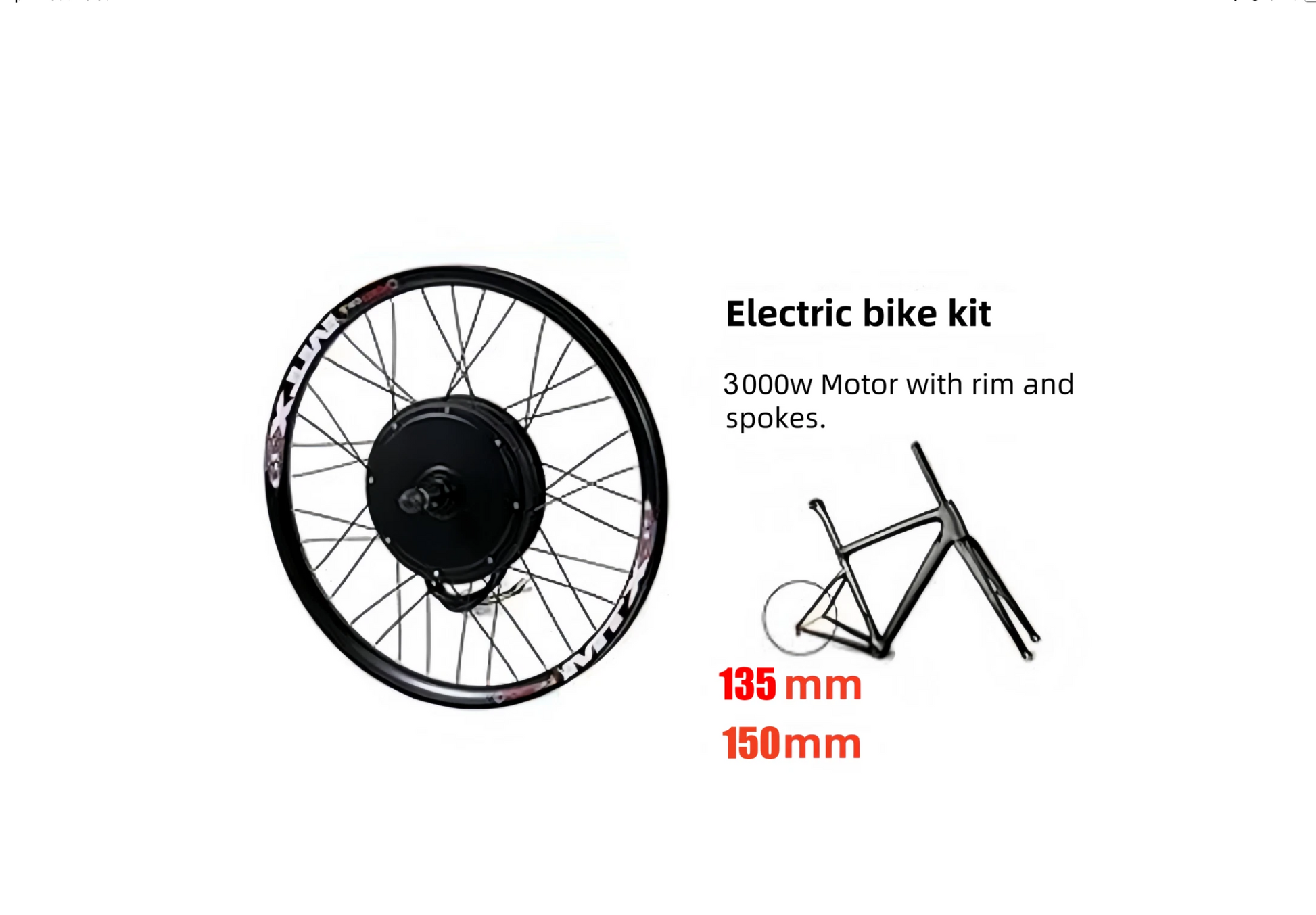

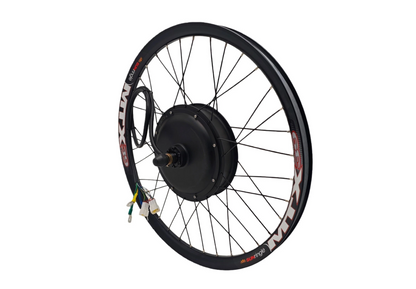

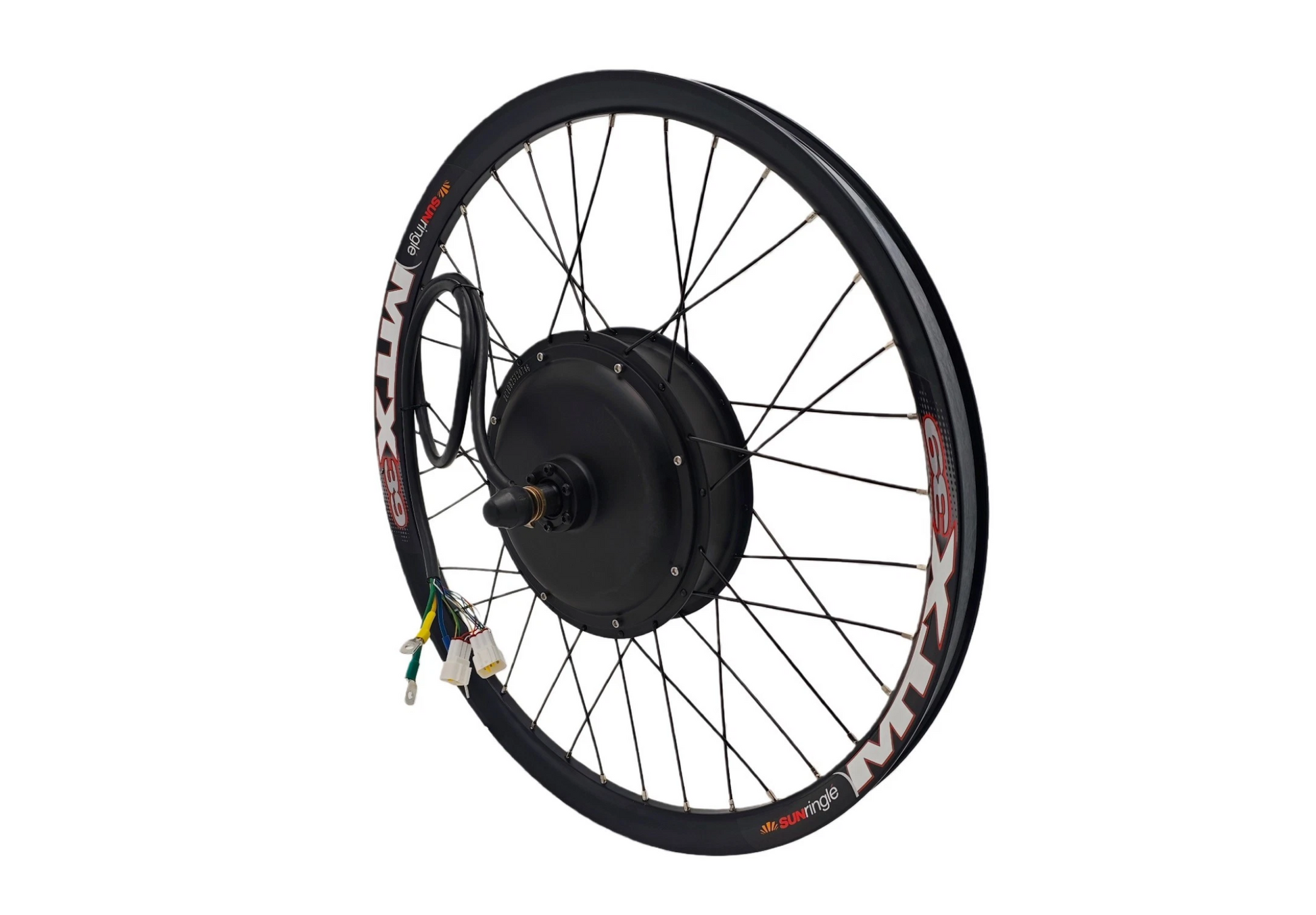

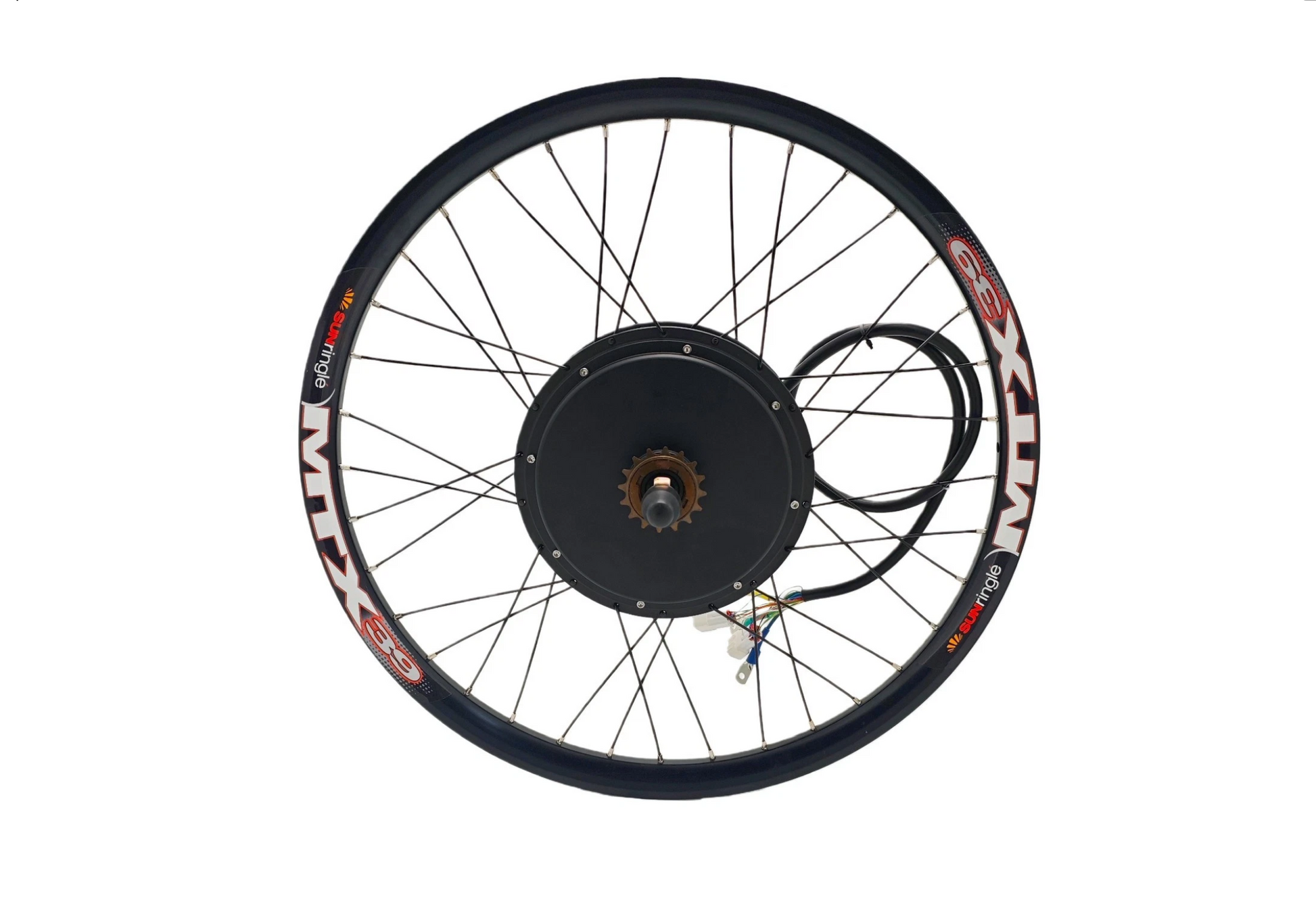

• 72V 3000W Rear Hub Motor Wheel (26", 27.5", or 29" MTX39)

• Single-Speed Freewheel

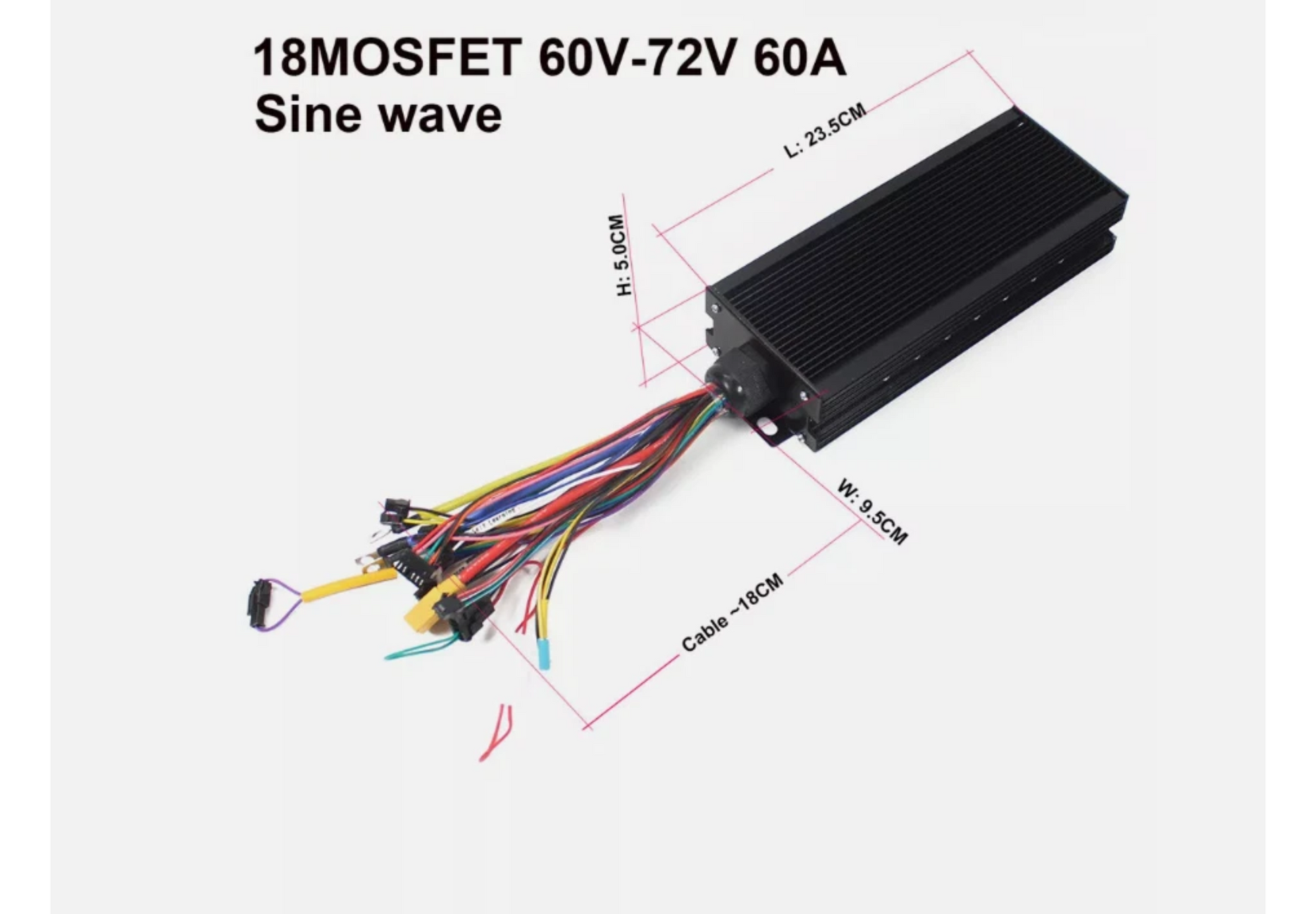

• 72V 60A Sine Wave Controller

• UKC1 Full-Colour Display

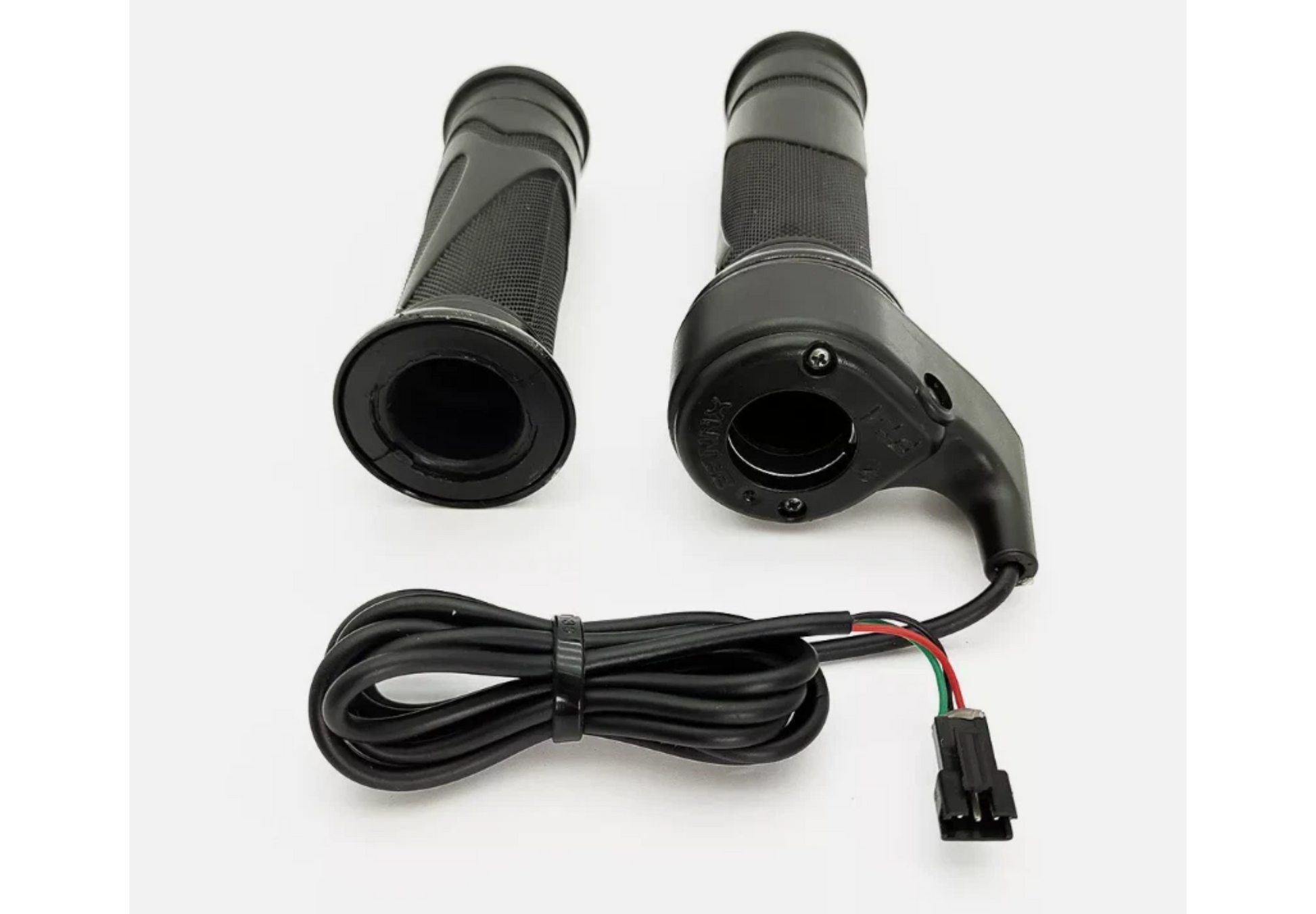

• Twist Throttle

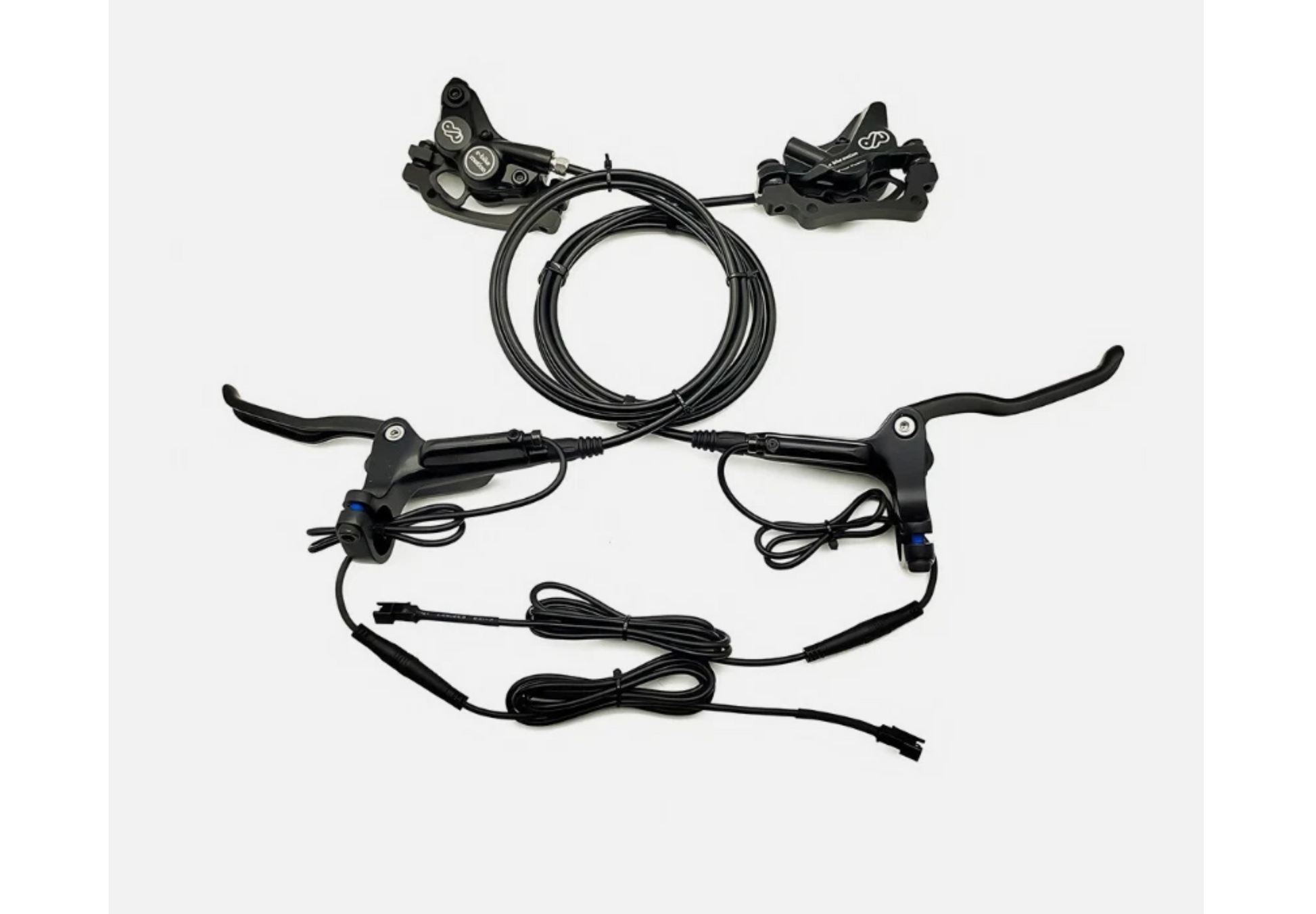

•  4-Piston hydraulic brakes

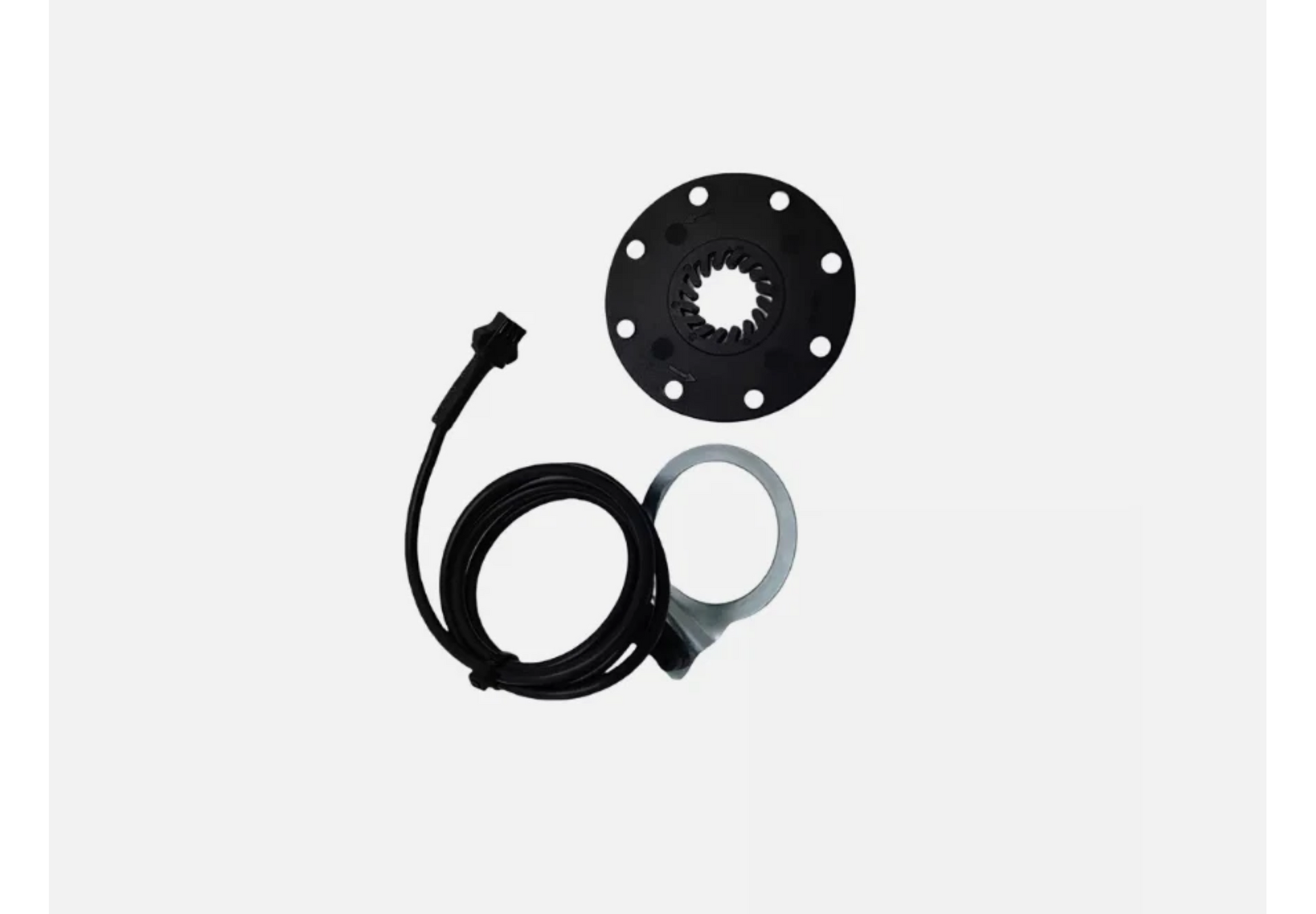

• Pedal Assist Sensor (PAS)

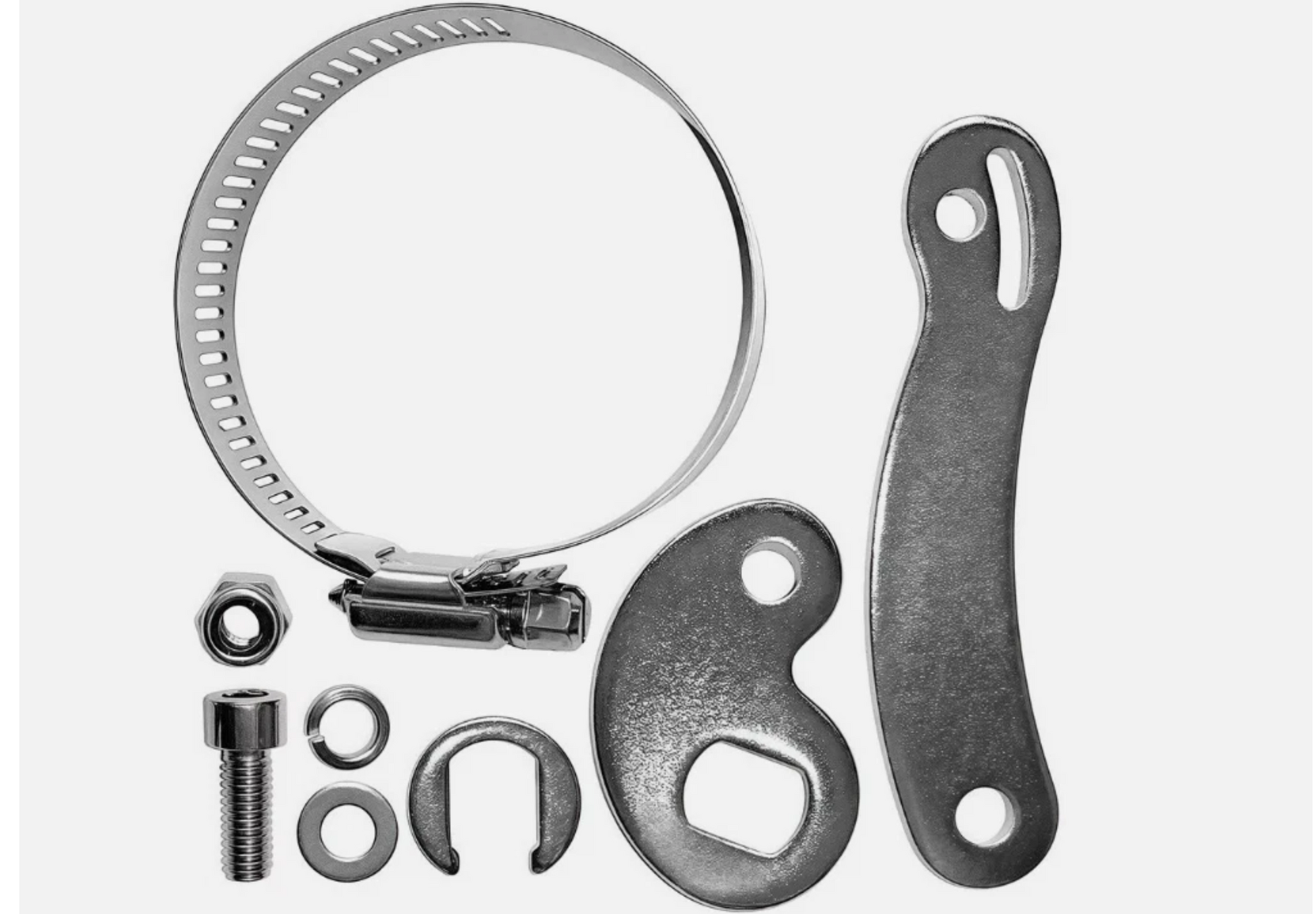

• Torque Arm

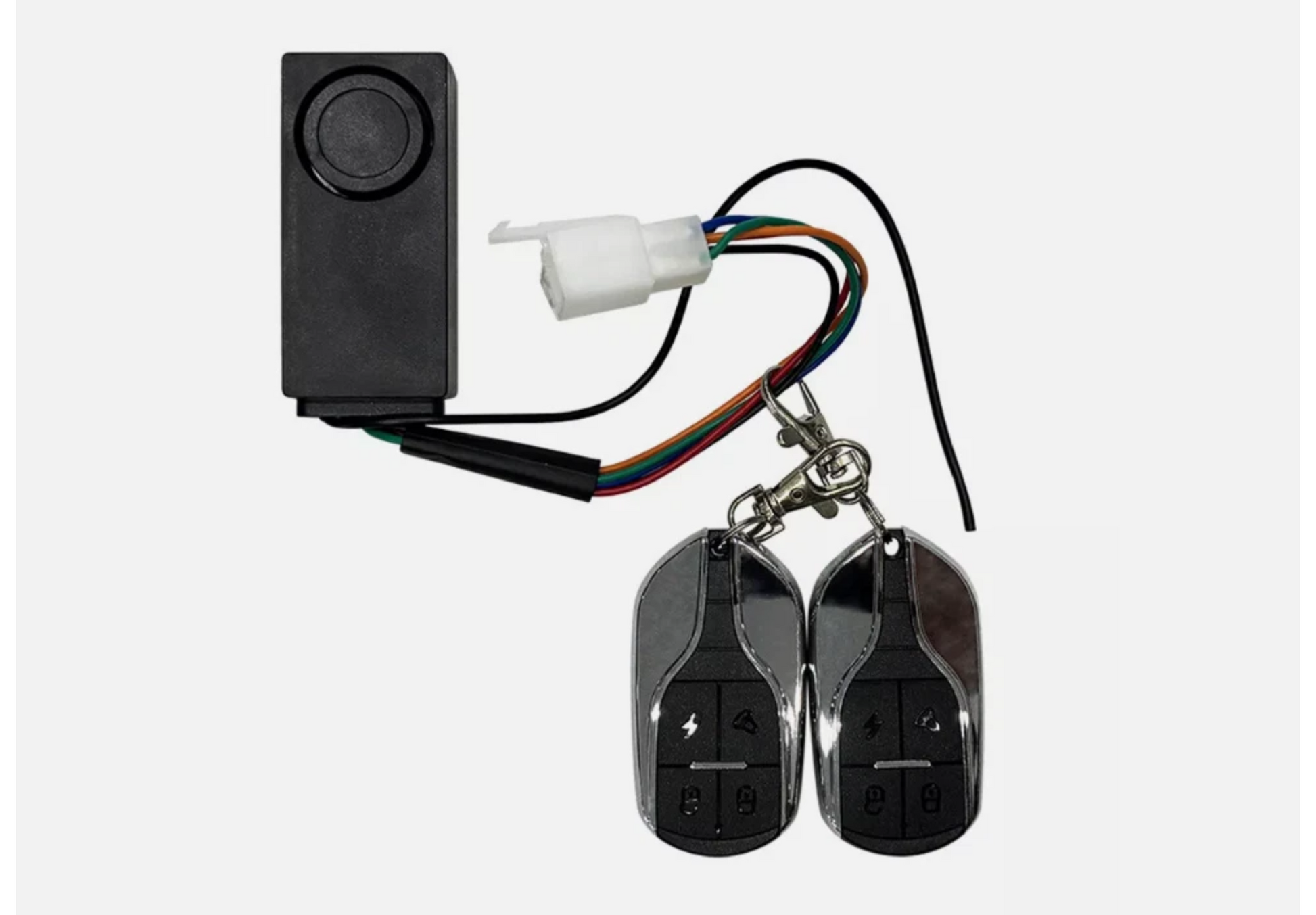

• Alarm Device

• Controller Bag

Controller Specifications

• Rated Power:

  • 48V: 1382W

  • 52V: 1498W

  • 60V: 1320W

  • 72V: 2073W

• Brake Type: Low Voltage Brake

• Alarm: Low Voltage Alarm

• Rotor Position Detection: Hall Sensor

• Dimensions: 233 × 81 × 48mm

• Waterproof Rating: IP65

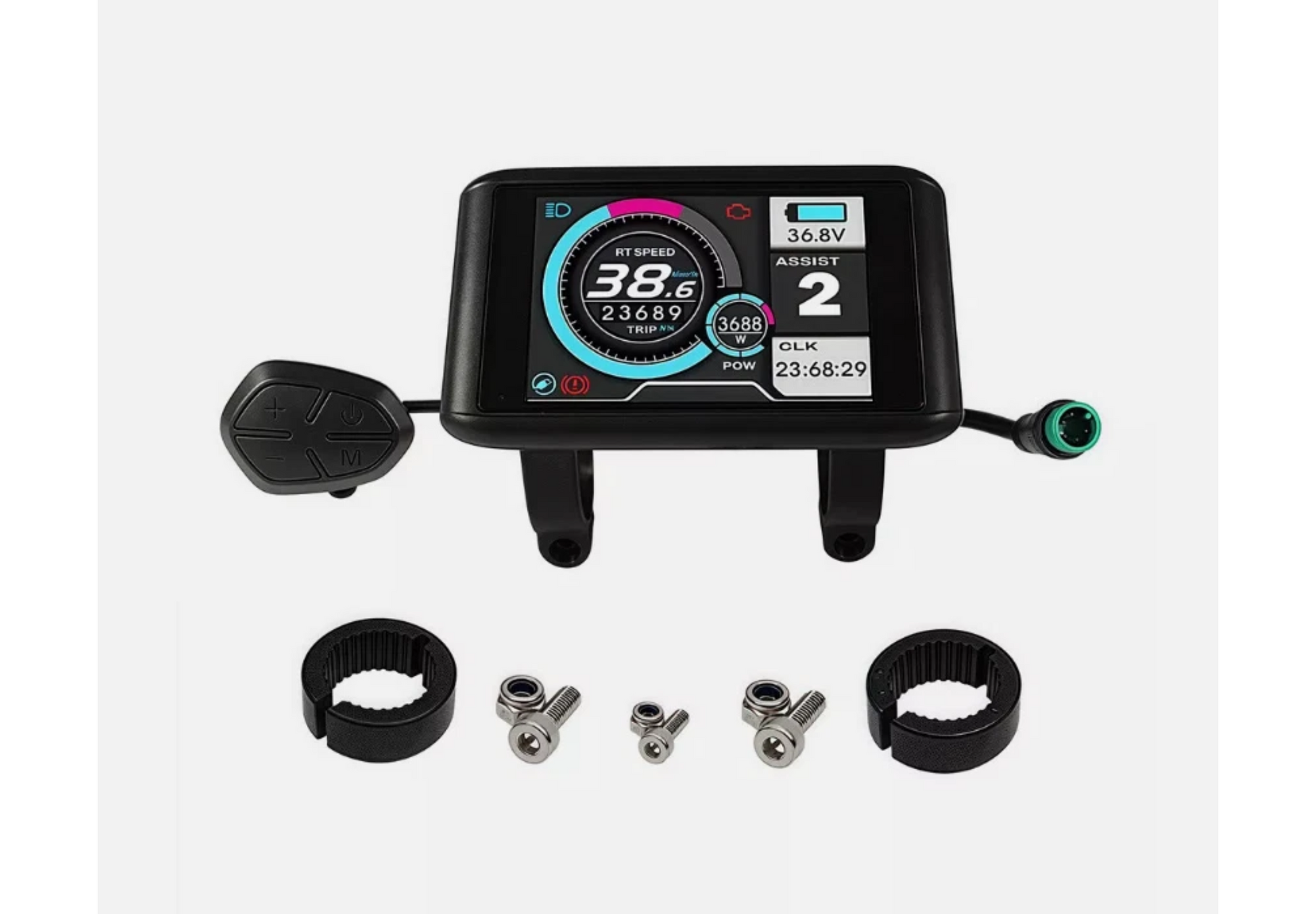

UKC1 Colour Display Specifications

• 3.5" IPS Colour Screen

• Compatible with 24V / 36V / 48V / 52V / 60V / 72V systems

• Rated Power Consumption: 1W

• Maximum Power Consumption: 5W

• USB Charging Output: 5V / 500mA

• Standby Leakage Current: <1

• Controller Supply Current: 100mA

• Dimensions: 111.1 × 66.8 × 82.8mm

• Waterproof Rating: IP65

• Operating Temperature: -20°C to 70°C

• Storage Temperature: -30°C to 80°C
